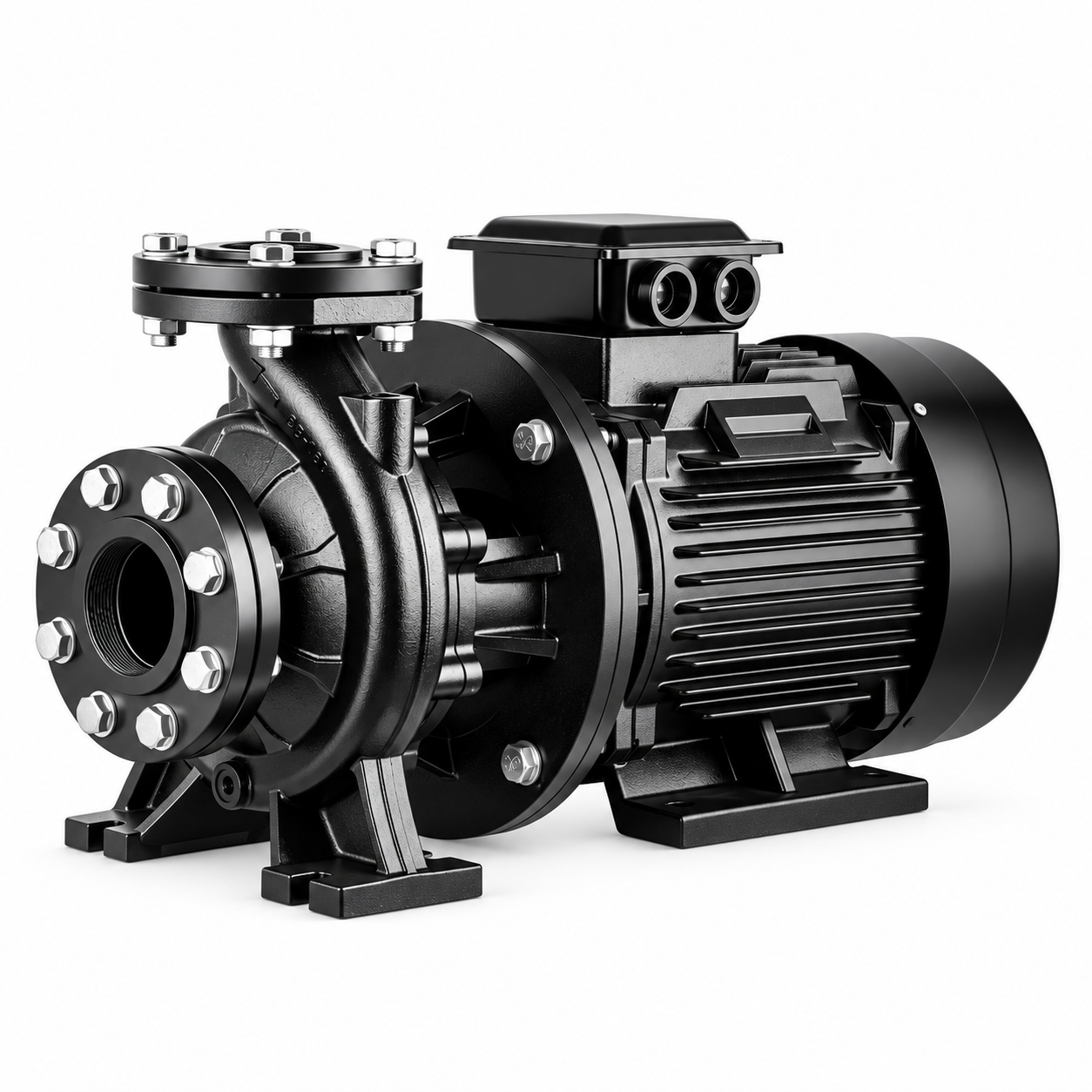

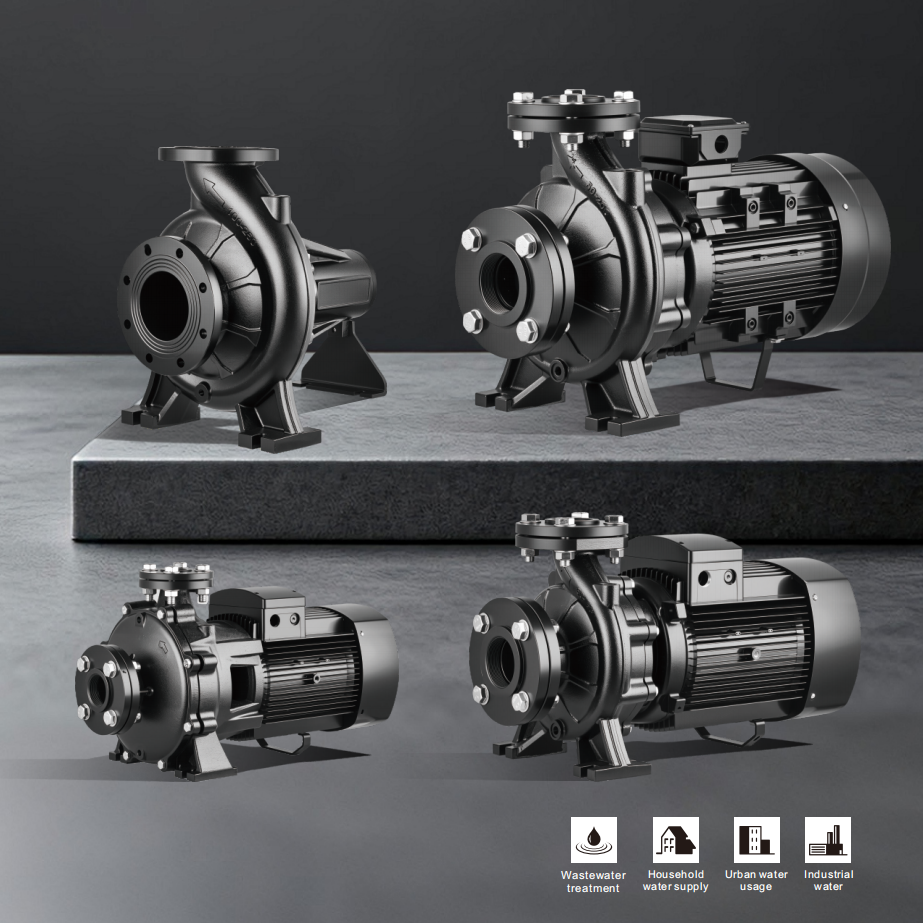

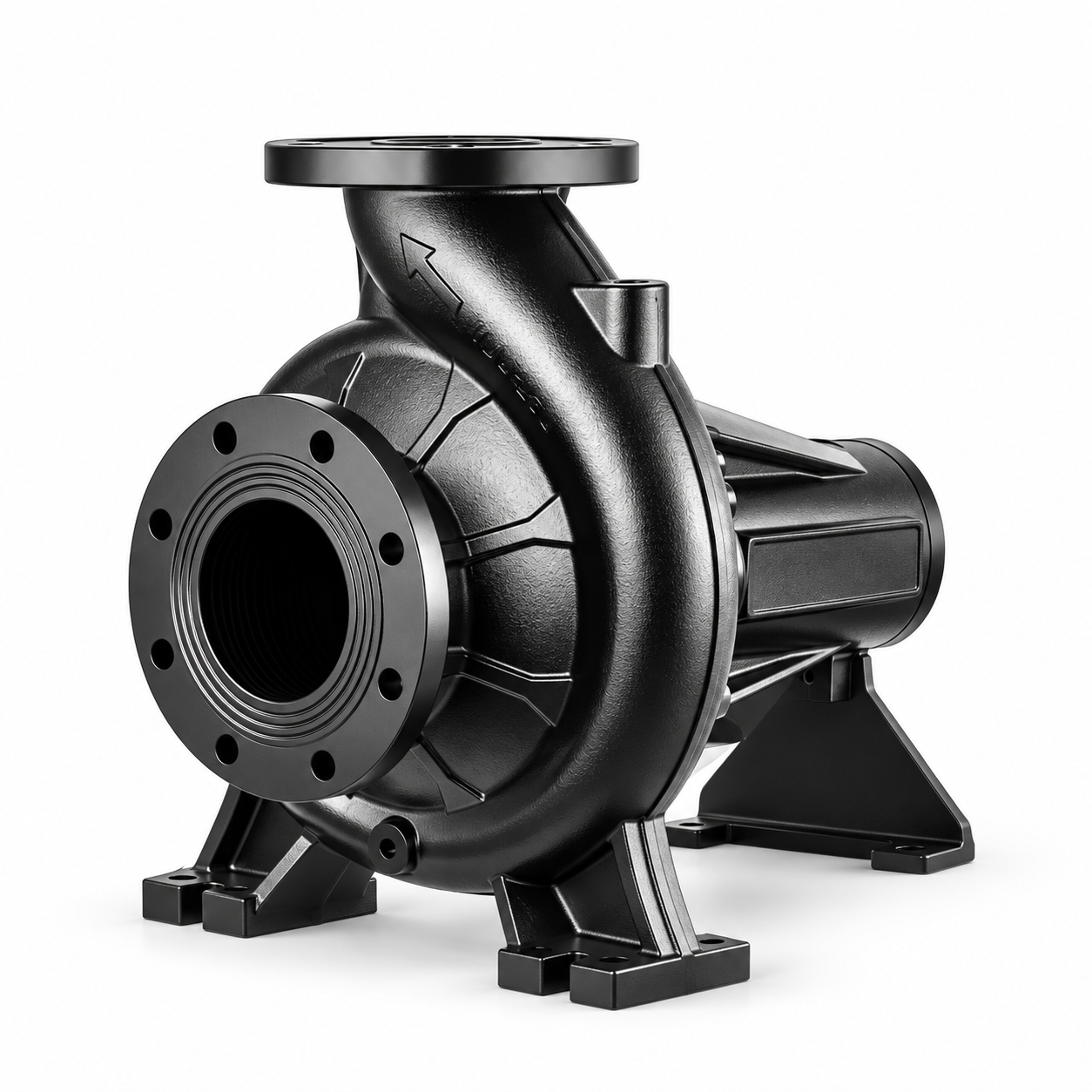

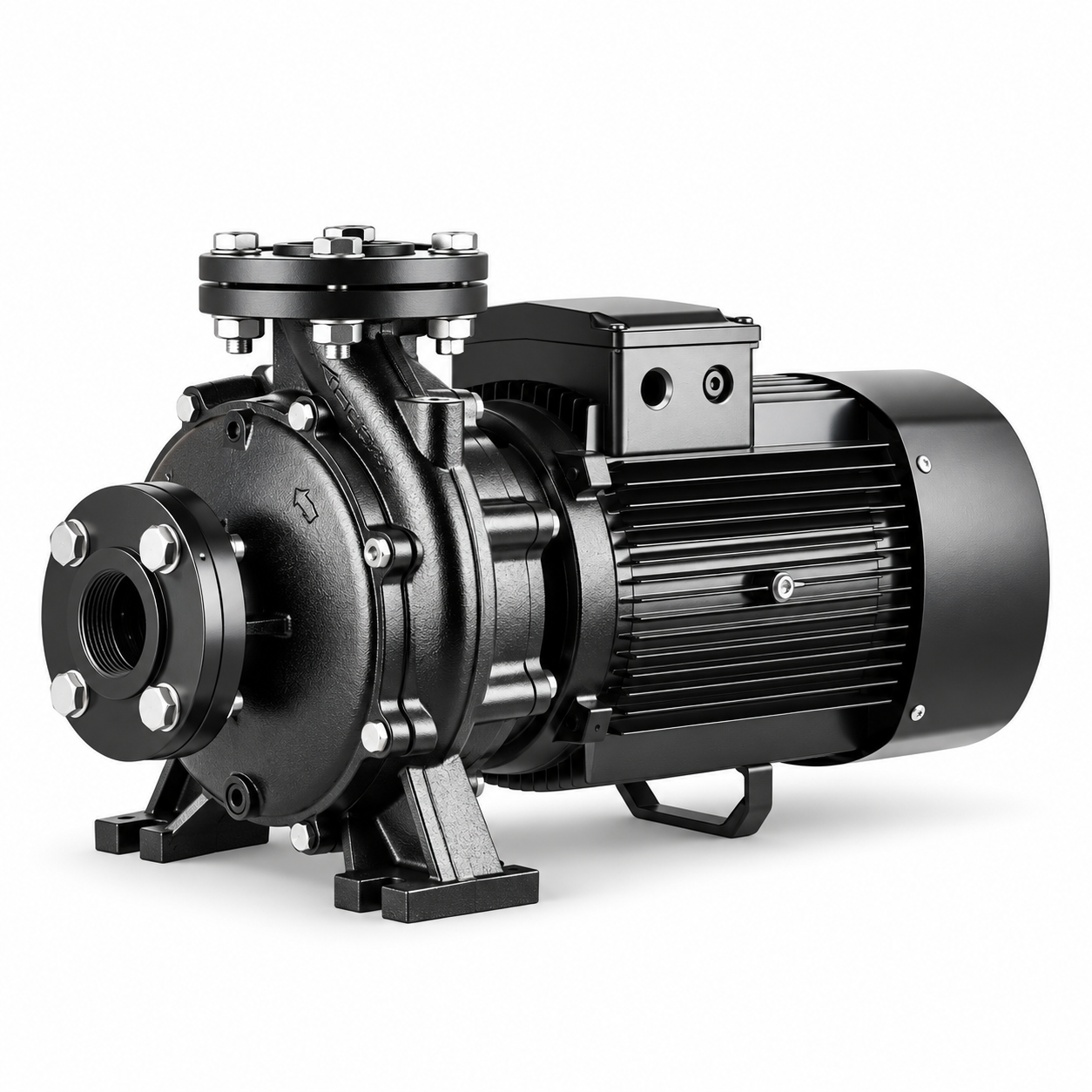

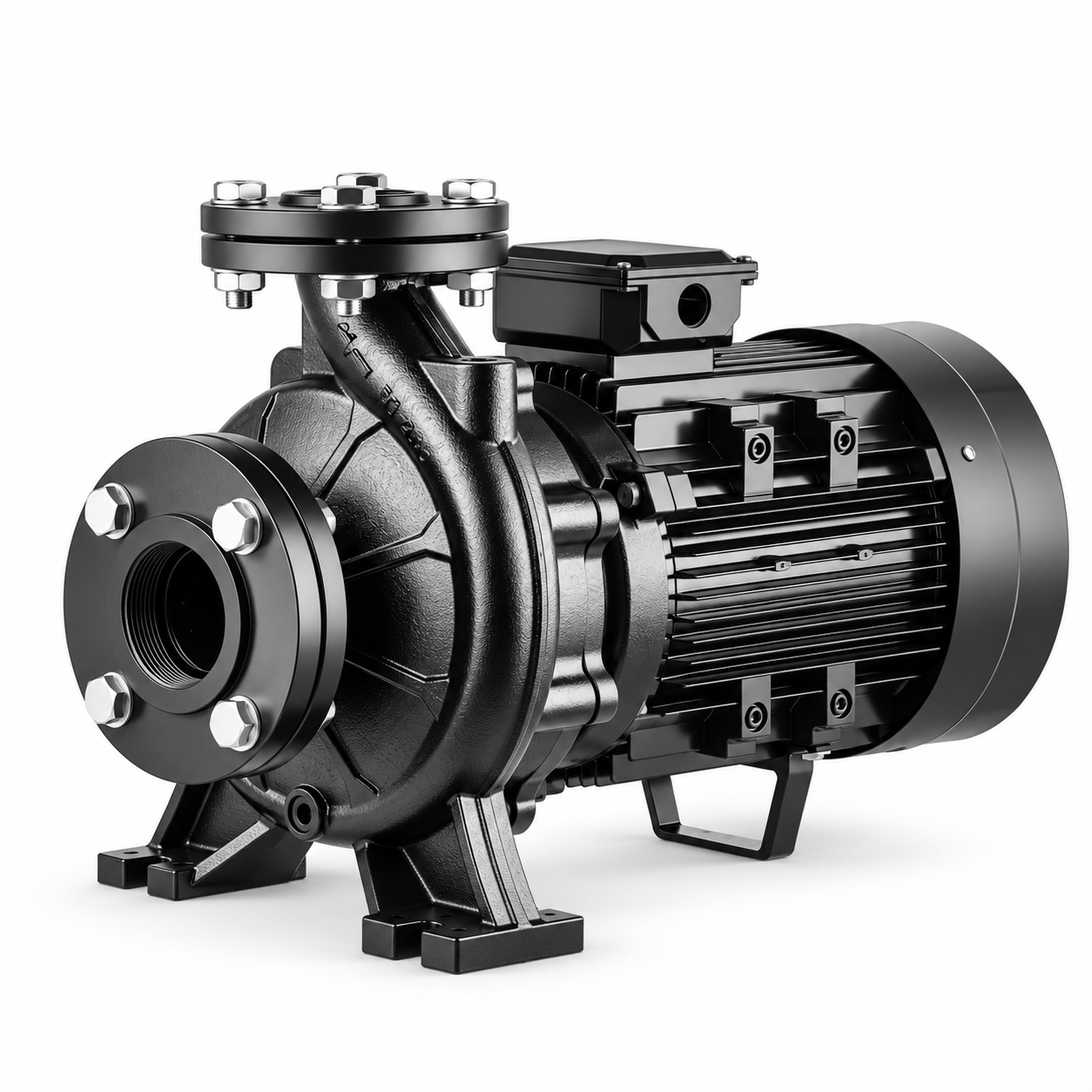

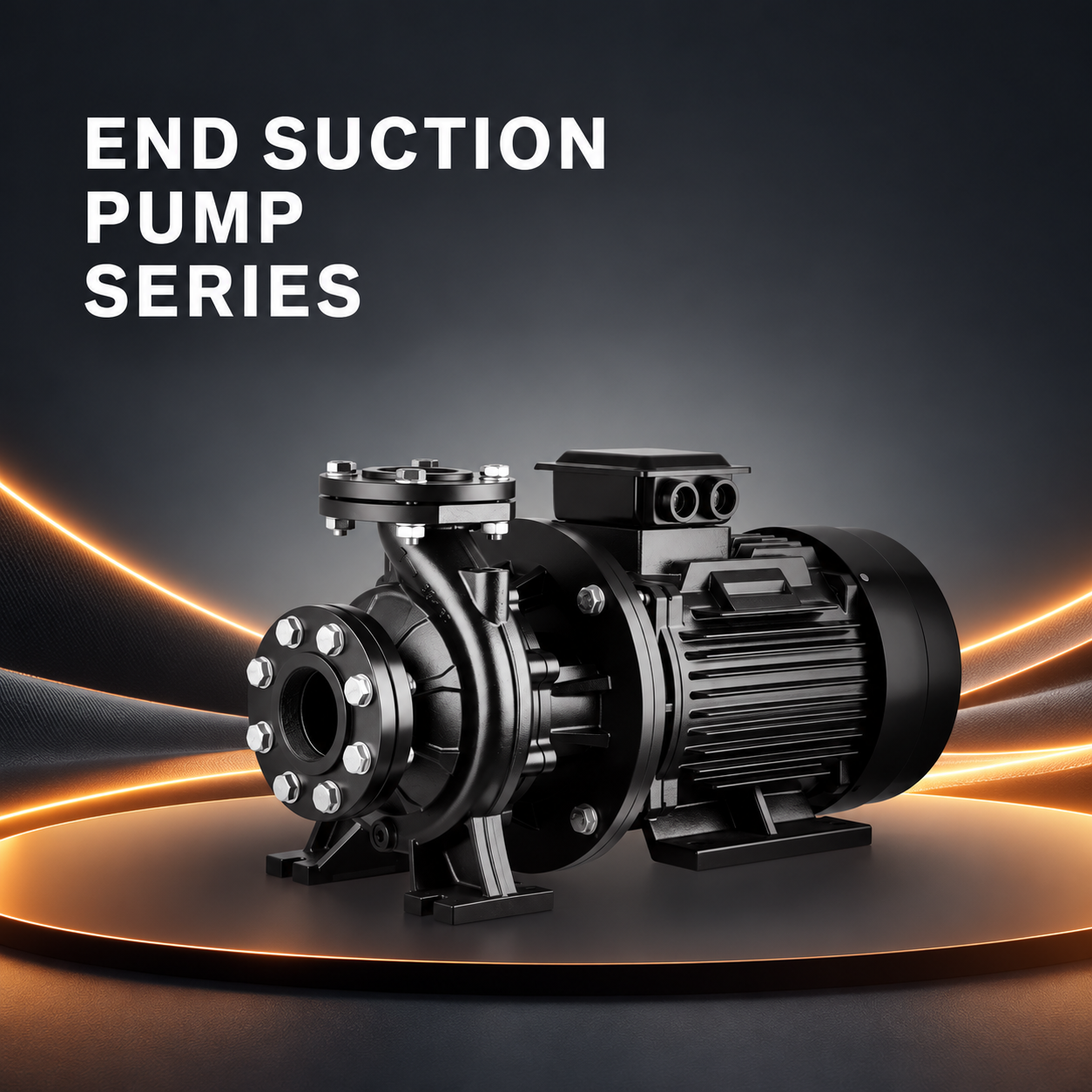

The End Suction Centrifugal Pump features a horizontal shaft, an axial suction inlet and a radial discharge outlet. The pump mainly consists of a pump body, impeller, shaft and sealing device. During operation, the rotating impeller generates centrifugal force to draw liquid into the pump and discharge it through the outlet.

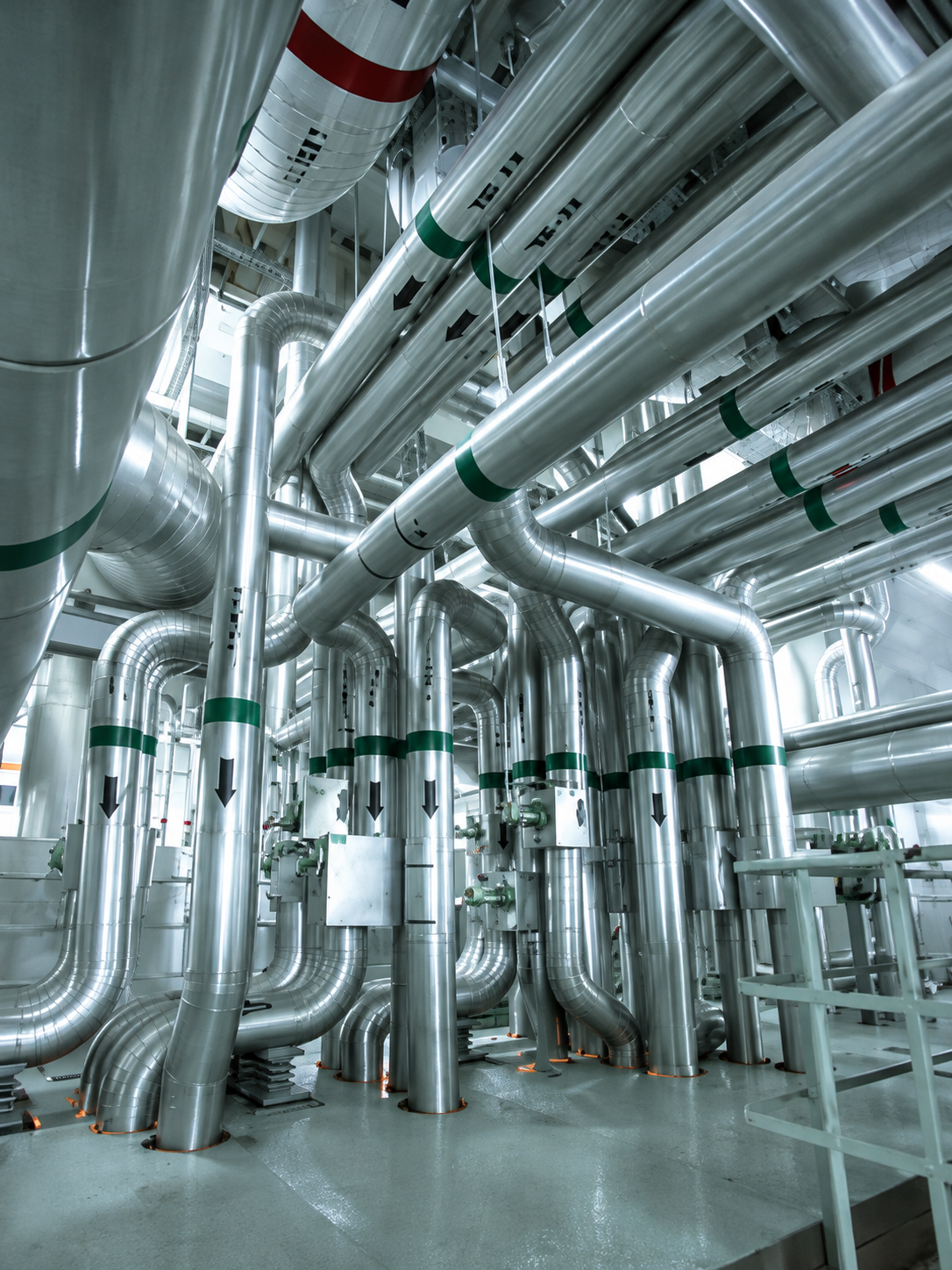

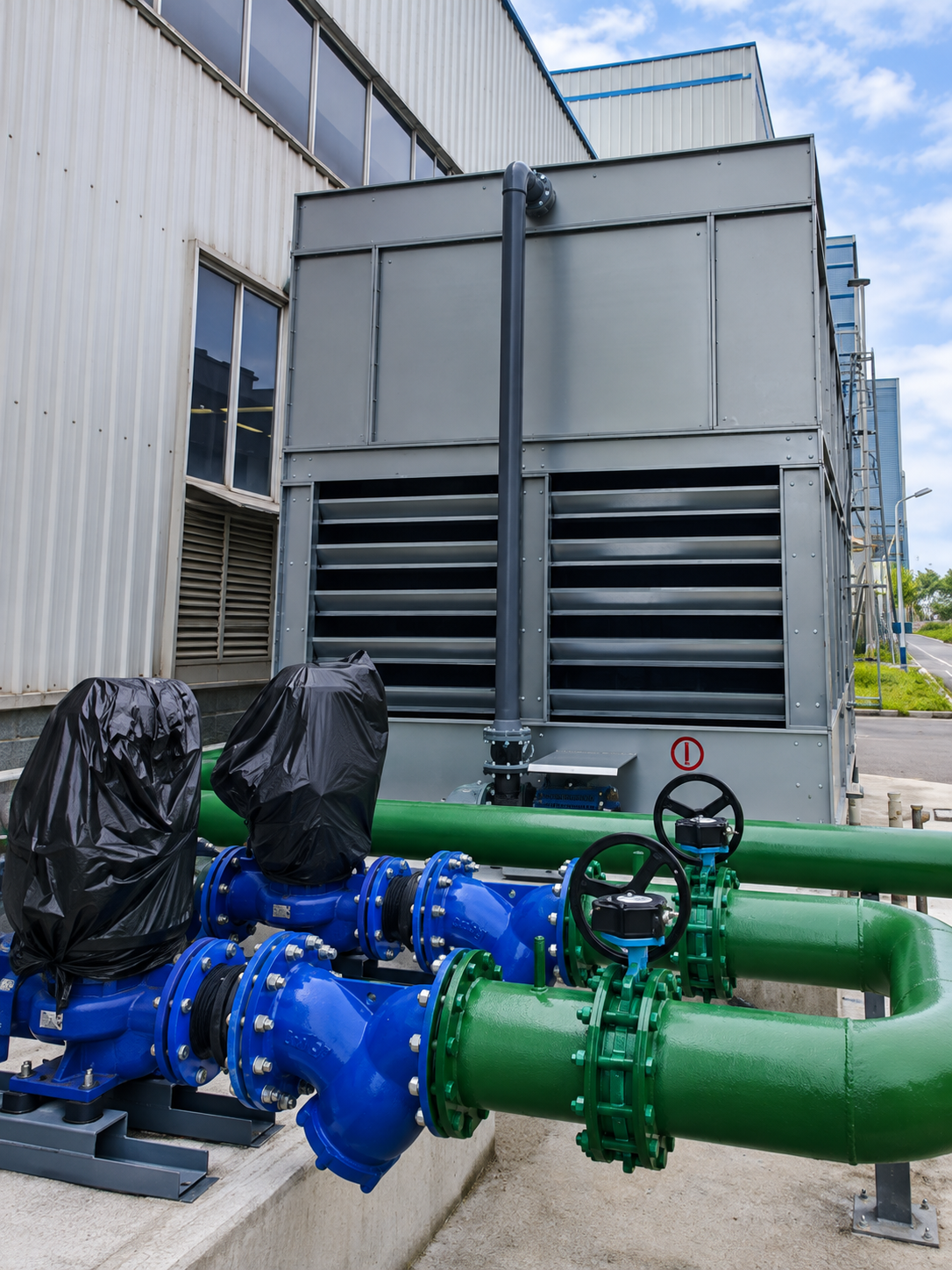

The series is used for water supply, heating systems, industrial pressure boosting, liquid transfer, air conditioning, district cooling, irrigation and firefighting applications.
 |
 |
 |
 |
The following tables list model power and pump head at different flow rates. Flow rate (Q) is shown in m³/h, head (H) in m, and power in kW. A dash (–) indicates that no value is listed for that flow point.
| Model | Power(kW) | 0 | 6 | 9 | 15 | 18 | 24 | 27 | 36 | 42 | 48 | 54 | 72 | 84 | 90 | 108 | 120 | 138 | 180 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32-125A/7 | 0.75 | 17.5 | 16.7 | 15 | 12 | 9 | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 32-125/11 | 1.1 | 22 | 21 | 20.2 | 17 | 15 | 9 | – | – | – | – | – | – | – | – | – | – | – | – |
| 32-160B/15 | 1.5 | 24 | 23.7 | 22.5 | 19.5 | 16.2 | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 32-160A/22 | 2.2 | 31 | 29.6 | 29 | 25.5 | 22.5 | 15 | – | – | – | – | – | – | – | – | – | – | – | – |
| 32-160/30 | 3 | 34.5 | 33.5 | 33 | 29 | 26.5 | 20 | 16.5 | – | – | – | – | – | – | – | – | – | – | – |
| 32-200A/30 | 3 | 43.2 | 42 | 40.5 | 35.2 | 32.2 | 24.6 | 19.8 | – | – | – | – | – | – | – | – | – | – | – |
| 32-200/40 | 4 | 52 | 50.5 | 50 | 45 | 41.9 | 35 | 30.3 | – | – | – | – | – | – | – | – | – | – | – |
| 32-250B/55 | 5.5 | 65 | 62.0 | 60 | 56 | 52.0 | 35 | – | – | – | – | – | – | – | – | – | – | – | – |
| 32-250A/75 | 7.5 | 80 | 75.0 | 73.0 | 70 | 63 | 53.0 | – | – | – | – | – | – | – | – | – | – | – | – |
| 32-250/110 | 11.0 | 92 | 88 | 87 | 83 | 79 | 68.0 | 50 | – | – | – | – | – | – | – | – | – | – | – |
| 40-125B/11 | 1.1 | 14.7 | – | – | – | 13 | 11.5 | 10.1 | – | – | – | – | – | – | – | – | – | – | – |
| 40-125A/15 | 1.5 | 18.1 | – | – | – | 17 | 15 | 13.9 | – | – | – | – | – | – | – | – | – | – | – |
| 40-125/22 | 2.2 | 24.5 | – | – | – | 23.2 | 21.5 | 20.2 | 16 | 12 | – | – | – | – | – | – | – | – | – |
| 40-160A/30 | 3 | 31.8 | – | – | – | 29 | 27.5 | 26.3 | 21.5 | 17.5 | – | – | – | – | – | – | – | – | – |
| 40-160/40 | 4 | 38 | – | – | – | 36 | 34 | 33 | 28.5 | 25 | 20.1 | – | – | – | – | – | – | – | – |
| 40-200A/55 | 5.5 | 44 | – | – | – | 42 | 40 | 38 | 32 | 27 | – | – | – | – | – | – | – | – | – |
| 40-200/75 | 7.5 | 55 | – | – | – | 52 | 49 | 48 | 42 | 37 | 32 | – | – | – | – | – | – | – | – |
| 40-250B/92 | 9.2 | 64 | – | – | – | 59 | 56.5 | 55 | 49.5 | 45 | 39.8 | – | – | – | – | – | – | – | – |
| 40-250A/110 | 11 | 72 | – | – | – | 67.5 | 65 | 63.5 | 57.5 | 52.2 | 47 | – | – | – | – | – | – | – | – |
| 40-250/150 | 15 | 82 | – | – | – | 79 | 77.3 | 76.5 | 71 | 66 | 60.5 | 54.8 | – | – | – | – | – | – | – |
| 50-125B/22 | 2.2 | 17 | – | – | – | – | – | – | 15.4 | 14 | 12.8 | 11.5 | – | – | – | – | – | – | – |
| 50-125A/30 | 3 | 20 | – | – | – | – | – | – | 18.8 | 18 | 17 | 15.6 | – | – | – | – | – | – | – |
| 50-125/40 | 4 | 24 | – | – | – | – | – | – | 23.1 | 22.6 | 21.5 | 20.3 | 15.8 | – | – | – | – | – | – |
| 50-160A/55 | 5.5 | 32 | – | – | – | – | – | – | 30.6 | 30 | 28 | 26.6 | 20.5 | – | – | – | – | – | – |
| 50-160/75 | 7.5 | 40 | – | – | – | – | – | – | 38 | 37 | 36 | 34.4 | 29 | – | – | – | – | – | – |
| 50-200B/92 | 9.2 | 50.5 | – | – | – | – | – | – | 46.8 | 45 | 43 | 40.9 | 32.5 | – | – | – | – | – | – |
| 50-200A/110 | 11 | 57.5 | – | – | – | – | – | – | 53.5 | 52 | 50 | 47.5 | 40 | – | – | – | – | – | – |
| 50-200/150 | 15 | 62.0 | – | – | – | – | – | – | 58.0 | 57 | 55 | 52.0 | 44.5 | – | – | – | – | – | – |
| 50-250B/150 | 15 | 68.5 | – | – | – | – | – | – | 64 | 63 | 61.5 | 59 | 50 | 41 | – | – | – | – | – |
| 50-250A/185 | 18.5 | 77 | – | – | – | – | – | – | 73.2 | 72 | 70 | 68 | 60.5 | 51.5 | – | – | – | – | – |
| 50-250/220 | 22 | 86.3 | – | – | – | – | – | – | 83 | 81.5 | 80 | 78 | 70 | 61 | – | – | – | – | – |
| 65-125B/40 | 4 | 19 | – | – | – | – | – | – | – | – | 17.3 | 16.8 | 14.5 | 13 | 11.8 | – | – | – | – |
| 65-125A/55 | 5.5 | 23 | – | – | – | – | – | – | – | – | 21.3 | 20.9 | 19 | 17.5 | 16.7 | 13.7 | – | – | – |
| 65-125/75 | 7.5 | 27 | – | – | – | – | – | – | – | – | 26 | 25.6 | 24.5 | 23 | 22.5 | 20 | 18 | – | – |
| 65-160B/92 | 9.2 | 33 | – | – | – | – | – | – | – | – | – | 31.5 | 30 | 28 | 27.1 | 24 | 21.5 | – | – |
| 65-160A/110 | 11 | 36 | – | – | – | – | – | – | – | – | – | 34.5 | 33 | 31.5 | 30.8 | 28 | 25.5 | – | – |
| 65-160/150 | 15 | 42 | – | – | – | – | – | – | – | – | – | 41 | 40 | 38.5 | 37.8 | 35 | 33 | – | – |
| 65-200B/150 | 15 | 45.5 | – | – | – | – | – | – | – | – | – | 46 | 43.5 | 41 | 39.2 | 33 | – | – | – |
| 65-200A/185 | 18.5 | 53 | – | – | – | – | – | – | – | – | – | 53.5 | 51.2 | 48.3 | 47 | 41.5 | – | – | – |
| 65-200/220 | 22 | 59 | – | – | – | – | – | – | – | – | – | 59.5 | 57.2 | 54 | 53 | 47 | 43.5 | – | – |
| 65-250B/220 | 22 | 62 | – | – | – | – | – | – | – | – | – | 61.5 | 58.2 | 56.5 | 54 | 49 | 45 | 36 | – |
| 65-250A/300 | 30 | 76 | – | – | – | – | – | – | – | – | – | 75 | 73 | 70 | 69 | 64 | 61 | 54 | – |
| 65-250/370 | 37 | 90 | – | – | – | – | – | – | – | – | – | 88 | 86 | 84 | 82 | 78 | 74 | 68 | – |
| 65-315C/370 | 37 | 102 | – | – | – | – | – | – | – | – | – | 99.2 | 97 | 95 | 94.5 | 92.4 | 90 | 83 | – |
| 65-315B/450 | 45 | 112 | – | – | – | – | – | – | – | – | – | 109.2 | 107.7 | 105.8 | 104.5 | 102.5 | 100 | 93 | 66 |
| 65-315A/550 | 55 | 122 | – | – | – | – | – | – | – | – | – | 119.2 | 117.4 | 115.7 | 114.5 | 112.5 | 110 | 103 | 76 |
| 65-315/750 | 75 | 141 | – | – | – | – | – | – | – | – | – | 139.8 | 137.3 | 135.6 | 134.5 | 132.5 | 130 | 122 | 96 |
| 80-125B/40 | 4 | 17 | – | – | – | – | – | – | – | – | 16.5 | 15.9 | 14.3 | 14 | 11.6 | 10 | 7.5 | – | – |
| 80-125A/55 | 5.5 | 21 | – | – | – | – | – | – | – | – | 20.5 | 20.0 | 19 | 18.0 | 16.5 | 15.0 | 12.5 | 9.5 | – |
| 80-125/75 | 7.5 | 26 | – | – | – | – | – | – | – | – | 25 | 25.0 | 24.5 | 24 | 22.5 | 22 | 20 | 16.5 | – |
| Model | Power(kW) | 0 | 60 | 90 | 120 | 144 | 180 | 200 | 210 | 220 | 240 | 280 | 300 | 360 | 400 | 500 | 600 | 800 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80-160C/110 | 11 | 27 | 27 | 26.3 | 24.5 | 21.1 | 16 | – | – | – | – | – | – | – | – | – | – | – | – |
| 80-160B/150 | 15 | 32.8 | 32.6 | 32.5 | 30.2 | 27 | 22.1 | 18.5 | 16.7 | – | – | – | – | – | – | – | – | – | – |
| 80-160A/185 | 18.5 | 39 | 38.5 | 38 | 36.7 | 33.6 | 28.8 | 25.3 | 23.5 | – | – | – | – | – | – | – | – | – | – |
| 80-160/220 | 22.0 | 44 | 43.5 | 43 | 41.7 | 38.6 | 33.8 | 30.3 | 28.5 | – | – | – | – | – | – | – | – | – | – |
| 80-200A/220 | 22 | 48 | 47.7 | 47.5 | 43.5 | 39.2 | 32.5 | 27.2 | 24.5 | – | – | – | – | – | – | – | – | – | – |
| 80-200/300 | 30 | 60 | 59.7 | 59.5 | 57 | 53.1 | 47 | 42.7 | 40.5 | – | – | – | – | – | – | – | – | – | – |
| 80-250B/370 | 37 | 71.5 | 70.9 | 70.5 | 65.5 | 59.3 | 51 | 43.2 | 38.5 | – | – | – | – | – | – | – | – | – | – |
| 80-250A/450 | 45 | 88 | 86.7 | 86.0 | 83.6 | 78.5 | 70.5 | 60 | 51 | – | – | – | – | – | – | – | – | – | – |
| 80-250/550 | 55 | 95 | 94.5 | 94.5 | 91.8 | 87 | 79.5 | 72.1 | 68.3 | – | – | – | – | – | – | – | – | – | – |
| 80-315B/450 | 45 | 85.0 | 84 | 82.6 | 82 | 78 | 68.3 | 61 | 56 | – | – | – | – | – | – | – | – | – | – |
| 80-315A/550 | 55 | 98 | 97 | 95.6 | 95 | 91 | 81.3 | 74 | 69 | – | – | – | – | – | – | – | – | – | – |
| 80-315/750 | 75 | 124 | 125 | 121.6 | 121 | 117 | 107.3 | 100 | 95 | 90 | 80.8 | – | – | – | – | – | – | – | – |
| 80-315/900 | 90 | 144 | 143 | 141.6 | 141 | 137 | 127.3 | 120 | 115 | 110 | 100.8 | – | – | – | – | – | – | – | – |
| 100-160B/150 | 15 | 35.0 | 33.5 | 32.5 | 30 | 27.8 | 24.5 | 21.5 | 20 | 18.3 | 15 | – | – | – | – | – | – | – | – |
| 100-160A/185 | 18.5 | 39 | 37.5 | 37 | 34.3 | 32.2 | 29 | 25.7 | 24 | 22 | 18 | – | – | – | – | – | – | – | – |
| 100-160/220 | 22.0 | 43 | 41 | 40 | 37.6 | 35.2 | 31.5 | 28.5 | 27 | 25.3 | 22 | – | – | – | – | – | – | – | – |
| 100-200B/220 | 22 | 39 | 36.7 | 35.7 | 33.8 | 31.7 | 28.5 | 26.8 | 26 | 25 | 22.9 | 16.3 | 13 | – | – | – | – | – | – |
| 100-200A/300 | 30 | 45 | 42.5 | 42.0 | 40.2 | 38.8 | 36.7 | 34.2 | 33 | 31.7 | 29 | 21.7 | 18 | – | – | – | – | – | – |
| 100-200/370 | 37 | 55 | 53 | 51.0 | 50.6 | 49.2 | 47 | 45 | 44 | 42.8 | 40.5 | 32.8 | 29 | – | – | – | – | – | – |
| 100-250B/450 | 45 | 65.0 | 65 | 64.0 | 63 | 61 | 58 | 56 | 55 | 53.3 | 50 | 39 | 33.5 | – | – | – | – | – | – |
| 100-250A/550 | 55 | 77 | 76 | 75.5 | 75 | 73.8 | 72 | 71.7 | 71.5 | 70.7 | 69 | 62.3 | 59 | – | – | – | – | – | – |
| 100-250/750 | 75 | 91 | 91 | 90.5 | 89.7 | 88 | 85.5 | 84 | 83.3 | 81.5 | 78 | 71.7 | 68.5 | 48 | – | – | – | – | – |
| 100-315C/550 | 55 | 80.0 | – | – | 79 | 77.4 | 75 | 74 | 73.5 | 73 | 71.3 | 68 | 66 | 60 | – | – | – | – | – |
| 100-315B/750 | 75 | 100 | – | – | 99 | 97.4 | 95 | 94 | 93.5 | 93 | 91.3 | 88 | 86 | 80 | – | – | – | – | – |
| 100-315A/900 | 90 | 118 | – | – | 116.5 | 114.7 | 112 | 111 | 110.8 | 110.5 | 108.7 | 106 | 104 | 98 | – | – | – | – | – |
| 100-315/1100 | 110 | 138 | – | – | 136.5 | 134.7 | 132 | 131 | 130.8 | 130.5 | 128.7 | 126 | 124 | 118 | – | – | – | – | – |
