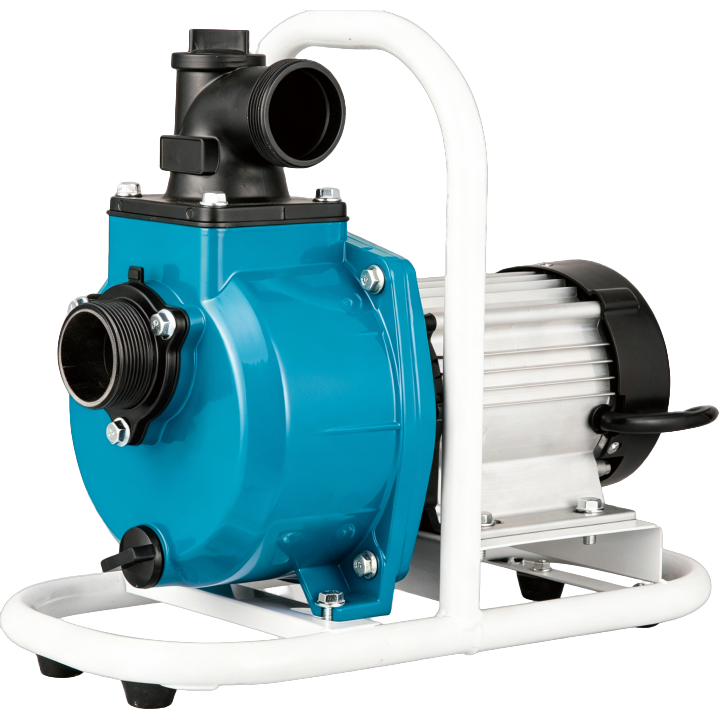

4 in DC Plastic Solar Surface Pump — SZSU Series


Key Features

• Above-Ground Surface Design: Installed on land for easy access, simple maintenance, and straightforward system monitoring, unlike submersible pumps .

• Corrosion-Resistant Plastic Construction: Pump body and impeller are made from high-strength engineering plastic, offering durability, corrosion resistance, and a lightweight design .

• High-Efficiency Brushless DC Motor: Permanent magnet motor (PMSM) offers 15-30% higher efficiency than conventional AC motors, reducing required solar panel size and lowering system costs .

• MPPT Technology: Integrated Maximum Power Point Tracking controller optimizes energy capture from solar panels, ensuring the pump operates at peak efficiency throughout the day .

• Integrated Protection System: The MPPT controller includes built-in protection against dry running, overload, over-voltage, and reverse polarity, safeguarding the pump and motor .

• Wide Voltage Range: Designed for flexible DC voltage operation (24V, 48V, 72V, etc.), making it compatible with a variety of solar panel configurations .

• Self-Priming Capability: Many models feature a self-priming design, allowing the pump to draw water from sources without requiring manual priming.

• Quiet Operation: Brushless DC motor operates with low noise, making it suitable for residential and agricultural settings.

Competitive Advantages

• Optimal Price-Performance Ratio: The SZSU Series provides a cost-effective entry into solar water pumping. By using durable plastic impellers and body, the pump is offered at a lower price point than fully stainless-steel models while retaining core corrosion protection and performance. This delivers excellent value for B2B buyers looking for reliable, budget-conscious solutions .

• High System Efficiency: The combination of a high-efficiency BLDC motor and an MPPT controller ensures that the pump maximizes the use of available solar energy. This translates to more water pumped per watt of solar panel installed, reducing the total cost of the solar array and improving the system's ROI .

• Reduced Maintenance and Longevity: The brushless DC motor design, combined with robust controller protection systems, minimizes maintenance requirements. The above-ground design allows for easy servicing, while the IPX4-rated motor ensures durability in outdoor conditions .

• Simplified Off-Grid Installation: As a self-contained DC system with an MPPT controller, the SZSU Series is significantly simpler to install than AC pump systems, which require inverters and complex wiring. This reduces installation costs, and the system can be configured for direct solar, battery, or hybrid AC/DC operation .

• Application Versatility: The above-ground design and flexible performance parameters make the SZSU Series suitable for a wide range of applications, from agricultural irrigation to domestic water supply and pond management .

Commercial Value

Cost-Effective ROI: The SZSU Series offers a compelling return on investment by combining lower upfront costs with near-zero operating expenses. The elimination of fuel costs and significant reduction in electricity bills lead to rapid payback periods, especially in off-grid agricultural applications .

Lower Total Cost of Ownership (TCO): TCO is minimized through high energy efficiency, low maintenance requirements (thanks to the BLDC motor), and the durable construction of the pump. The above-ground design also reduces the cost and complexity of servicing.

Scalable and Adaptable: The solar system is modular. Buyers can begin with a smaller pump and solar array, and easily expand the system by adding more panels or upgrading to a more powerful pump to meet growing water demands .

Supports ESG Goals: Using solar power aligns with global environmental, social, and governance (ESG) targets. This positions businesses as sustainable operators, helping them meet green procurement standards .

Simplified Logistics and Installation: As a self-contained, above-ground unit, the SZSU Series is easy to ship, handle, and install compared to submersible pumps or complex diesel generator setups, reducing project timelines and logistical costs.

FAQ

Q: What is a solar surface pump?
A: A solar surface pump is a water pump that is installed above ground and powered by solar energy. It is designed to draw water from surface sources like rivers, lakes, ponds, or shallow wells, making it a versatile and accessible solution for off-grid irrigation and water supply .

Q: What are the advantages of a plastic body surface pump?
A: The main advantages are a lower initial purchase price, making solar pumping technology accessible to a wider range of users, and a lightweight design that simplifies installation and transport. The plastic material offers excellent corrosion resistance in various water conditions .

Q: What does the MPPT controller do?
A: The MPPT (Maximum Power Point Tracking) controller maximizes the efficiency of the solar panels by continuously adjusting the pump's electrical load to draw the maximum available power, ensuring the pump operates effectively even in changing sunlight conditions .

Q: Can the SZSU pump be used with a battery?
A: Yes, the SZSU Series can be configured to operate with a battery bank. This allows for water pumping during periods of low sunlight or at night .

Q: What is the difference between a surface pump and a submersible pump?
A: A surface pump is installed above ground and draws water through a suction pipe, making it easier to access for maintenance. A submersible pump is installed underwater and pushes water to the surface. Surface pumps are ideal for shallow water sources, while submersible pumps are used for deep wells .

Q: What is the maximum immersion depth for this pump?
A: As a surface pump, the SZSU Series is not designed for submersion. It is installed above ground and draws water from a maximum depth, typically up to 8 meters suction head, depending on the model .
