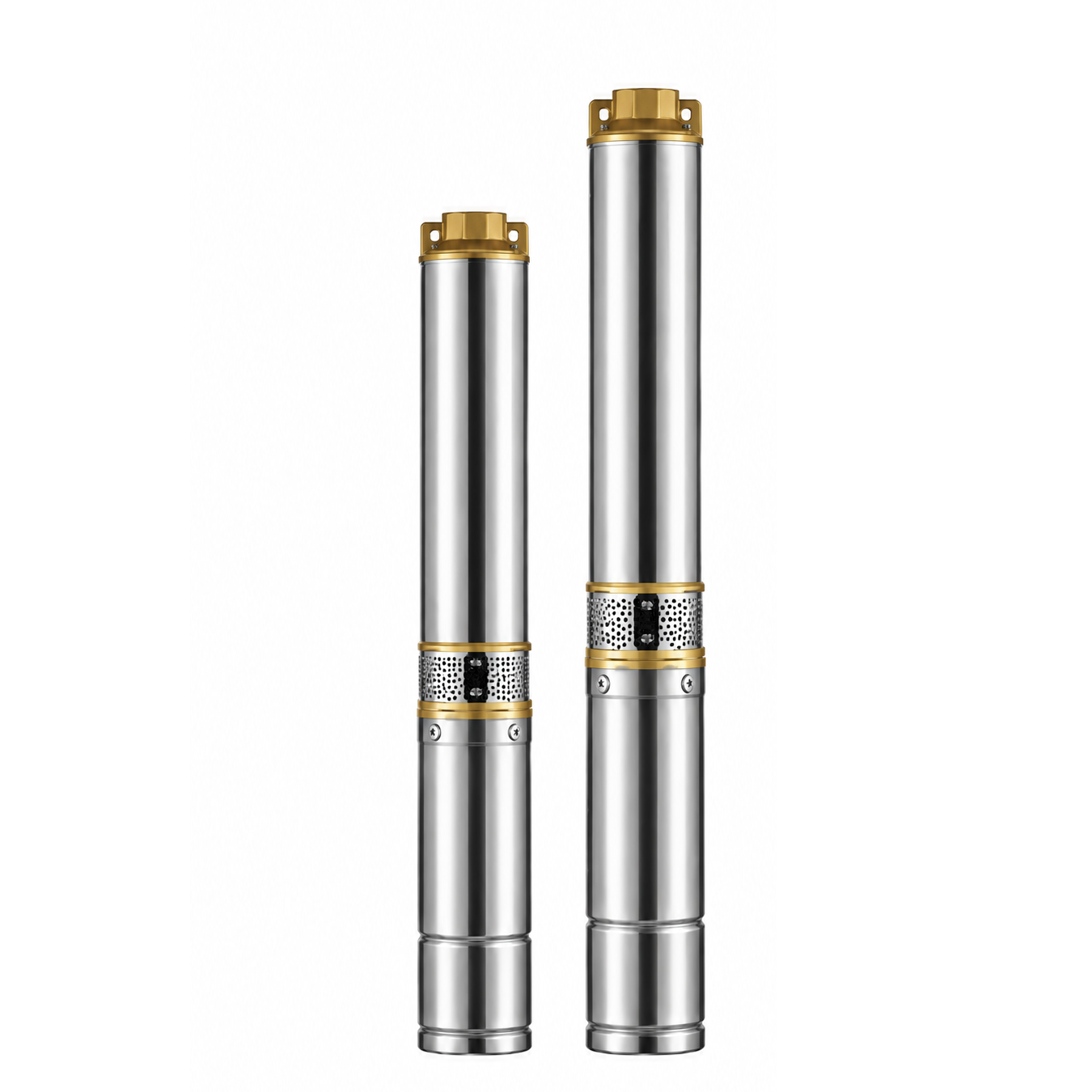

3/4 in DC Plastic Impeller Solar Submersible Pump — SSC Series

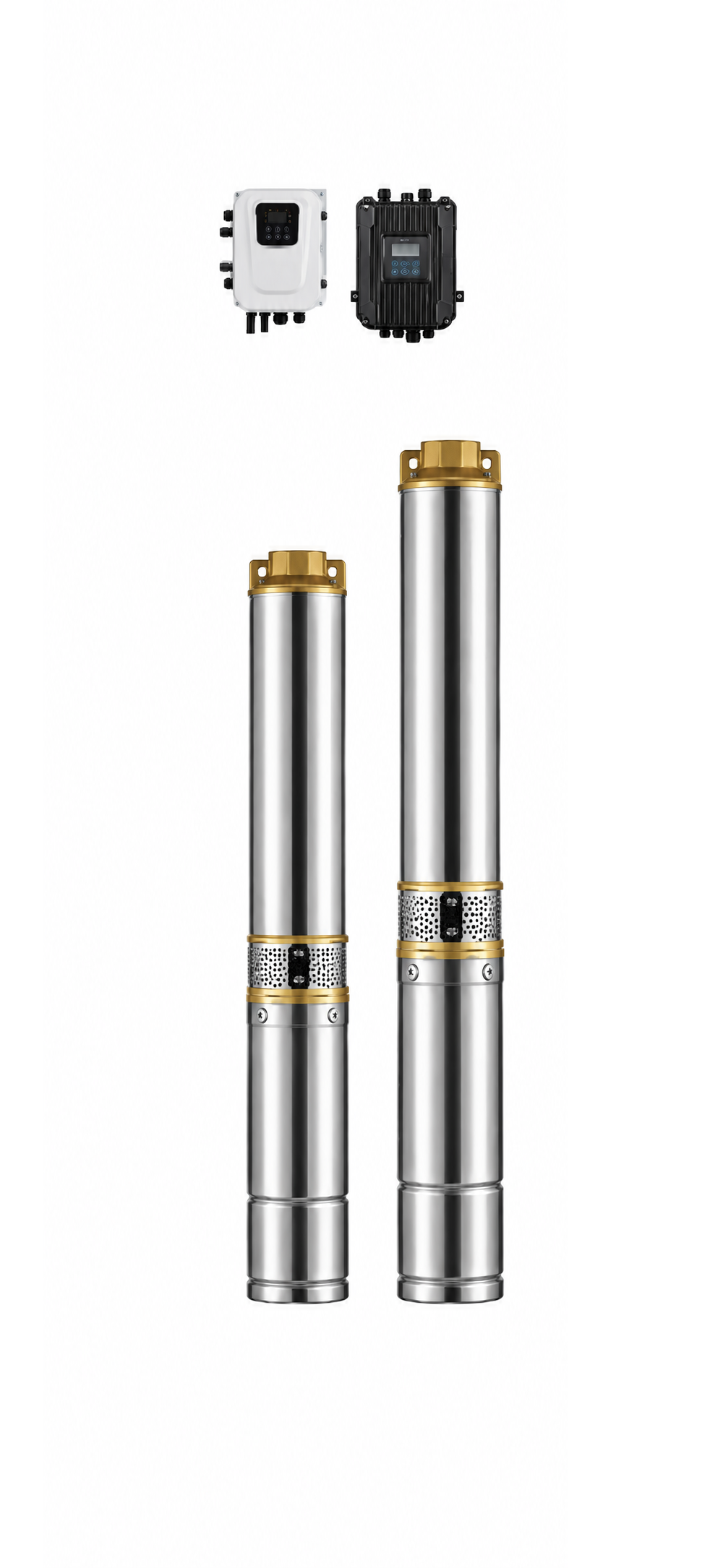

Detail / Structure Image

Key Features

• High-Efficiency Brushless DC Motor: Uses a permanent magnet motor (PMSM) that offers 15-30% higher efficiency than conventional AC motors, reducing the required solar panel size and lowering system costs .

• Cost-Effective Plastic Impellers: Employs robust, engineered plastic impellers for a reliable and economical pump, offering a lower initial investment compared to all-stainless-steel models while maintaining performance .

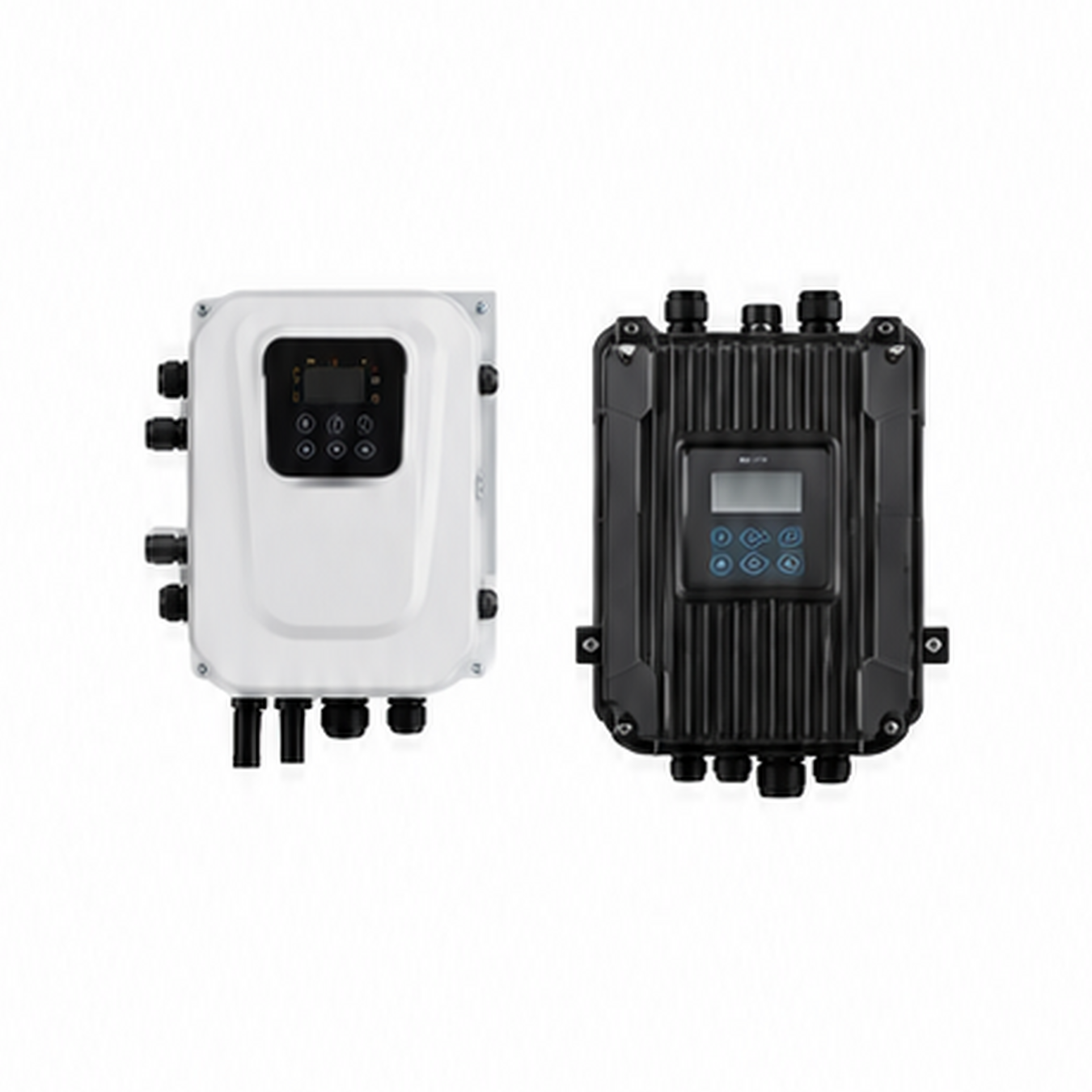

• MPPT Technology: Integrated Maximum Power Point Tracking controller optimizes energy capture from solar panels, ensuring the pump operates at peak efficiency throughout the day .

• Stainless Steel Pump Body: The pump body is constructed from corrosion-resistant stainless steel (AISI 304), providing durability and a long service life for the core structure .

• IP68 Protection & Oil-Filled Motor: The motor is fully sealed with IP68 protection for safe submersion and is oil-filled for efficient heat dissipation, ensuring stable motor temperature .

• Smart Protection System: The MPPT controller includes built-in protection against dry running, overload, over-voltage, and under-voltage, safeguarding the pump and motor .

• Wide Voltage Range: Designed for flexible DC voltage operation (24V, 48V, 72V, 110V, etc.), making it compatible with a variety of solar panel configurations .

• Multistage Impeller Design: Employs a multistage centrifugal pump design to generate high water pressure, enabling water lifting from significant depths .

Competitive Advantages

• Optimal Price-Performance Ratio: The SSC Series provides a cost-effective entry into solar water pumping. By using durable plastic impellers, the pump is offered at a lower price point than fully stainless-steel models while retaining a stainless steel body for core corrosion protection. This delivers excellent value for B2B buyers looking for reliable, budget-conscious solutions .

• High System Efficiency: The combination of a high-efficiency BLDC motor and an MPPT controller ensures that the pump maximizes the use of available solar energy. This translates to more water pumped per watt of solar panel installed, reducing the total cost of the solar array and improving the system's ROI .

• Reduced Maintenance and Longevity: The brushless DC motor design and robust controller protection systems minimize maintenance requirements. The pump's ability to handle some sand content and run dry temporarily, coupled with IP68 sealing, ensures reliable performance and a long operational life in typical agricultural and domestic settings .

• Simplified Off-Grid Installation: As a self-contained DC system with an MPPT controller, the SSC Series is significantly simpler to install than AC pump systems, which require inverters and complex wiring. This reduces installation costs, and the system can be configured for direct solar, battery, or hybrid AC/DC operation .

Commercial Value

Cost-Effective ROI: The SSC Series offers a compelling return on investment by combining lower upfront costs with near-zero operating expenses. The elimination of fuel costs and significant reduction in electricity bills lead to rapid payback periods, especially in off-grid agricultural applications.

Lower Total Cost of Ownership (TCO): TCO is minimized through high energy efficiency, low maintenance requirements (thanks to the BLDC motor), and the durable construction of the pump. The system's reliability reduces downtime, ensuring a continuous water supply for critical operations.

Scalable and Adaptable: The solar system is modular. Buyers can begin with a smaller pump and solar array, and easily expand the system by adding more panels or upgrading to a more powerful pump to meet growing water demands.

Supports ESG Goals: Using solar power aligns with global environmental, social, and governance (ESG) targets. This positions businesses as sustainable operators, and helps them meet green procurement standards, which can be a significant competitive advantage .

Simplified Logistics and Installation: As a self-contained unit, the SSC Series is easy to ship, handle, and install compared to complex diesel generator setups, reducing project timelines and logistical costs.

FAQ

Q: What is a plastic impeller solar pump?
A: It is a solar-powered submersible pump that uses high-grade engineering plastic for its impellers. This material choice makes the pump more affordable while still providing good durability and performance for clean water applications . The pump body and motor housing are still made of stainless steel for corrosion resistance.

Q: What are the advantages of a plastic impeller versus a stainless steel impeller?
A: Plastic impellers are a cost-effective choice that offers good performance. For applications with clean water and standard requirements, they provide a very good balance of price and reliability. Stainless steel impellers are typically more durable and longer-lasting but come at a higher initial cost .

Q: What does the MPPT controller do?
A: The MPPT (Maximum Power Point Tracking) controller is a smart device that optimizes the power output from the solar panels. It ensures the pump motor operates at its highest efficiency point under varying sunlight conditions, maximizing the amount of water pumped throughout the day .

Q: Can this pump run directly from solar panels?
A: Yes, the SSC Series pump is designed to run directly from solar panels via the MPPT controller. It can be configured for direct solar, battery, or hybrid AC/DC operation, providing flexibility for different setups .

Q: What is the difference between the SSC and SSB Series?
A: The main difference lies in the pumping mechanism. The SSC Series uses a multistage centrifugal pump with plastic impellers, which is best for higher flow rates at lower heads. The SSB Series is a screw pump, which is ideal for low-flow, high-head applications.
